The electric sit stand desk is composed of frame, motor, control box, height adjustment panel and desktop. The motor and control box are the core of the electric sit stand desk, followed by the table leg. The mechanical parts of linear drive are all in the frames. The quality of electric sit stand desk mainly depends on the motor, control box and frame.
Classification of electric sit stand desk.
There is no standardization for the classification of electric sit stand desk. Each manufacture has its own standards. The classification of Venace Intelligent technology is classified according to the number of stages, the number of columns and the number of motors.
Eg. Standing Desk
3 stages 2 column dual motor

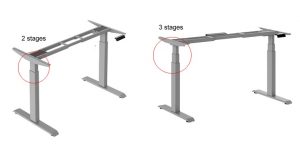

The sit stand desk has 2 stages and 3 stages. Venace named 2 stages as height adjustable desk, in order to difference , 3 stages as standing desk.
3 stages’ have a longer stroke than 2 stages’, such as Venace height adjustable desk
The Min. height is 690mm, the Max. height is 1190mm and the stroke is 500mm, while the Standing Desk with 3 stages has Min. height 600mm, Max. Height 1290mm and the stoke is 690mm.
2.number of columns
3.number of motors
The motor directly drives the mechanical part to adjust the height of standing desk, so the number of motors is mainly related to the total cost of the product.
Single motor drive
A single motor is connected with a mechanical device to drive the legs up and down.
For example: sit to stand desk
Dual motor drive
Each column is driven by a motor. The control box is connected with the motor, and the standing desk is controlled to up or down through the control panel.
For example: standing desk
Multi motor drive
