Built-In Ironing Board for Wardrobe & Closet

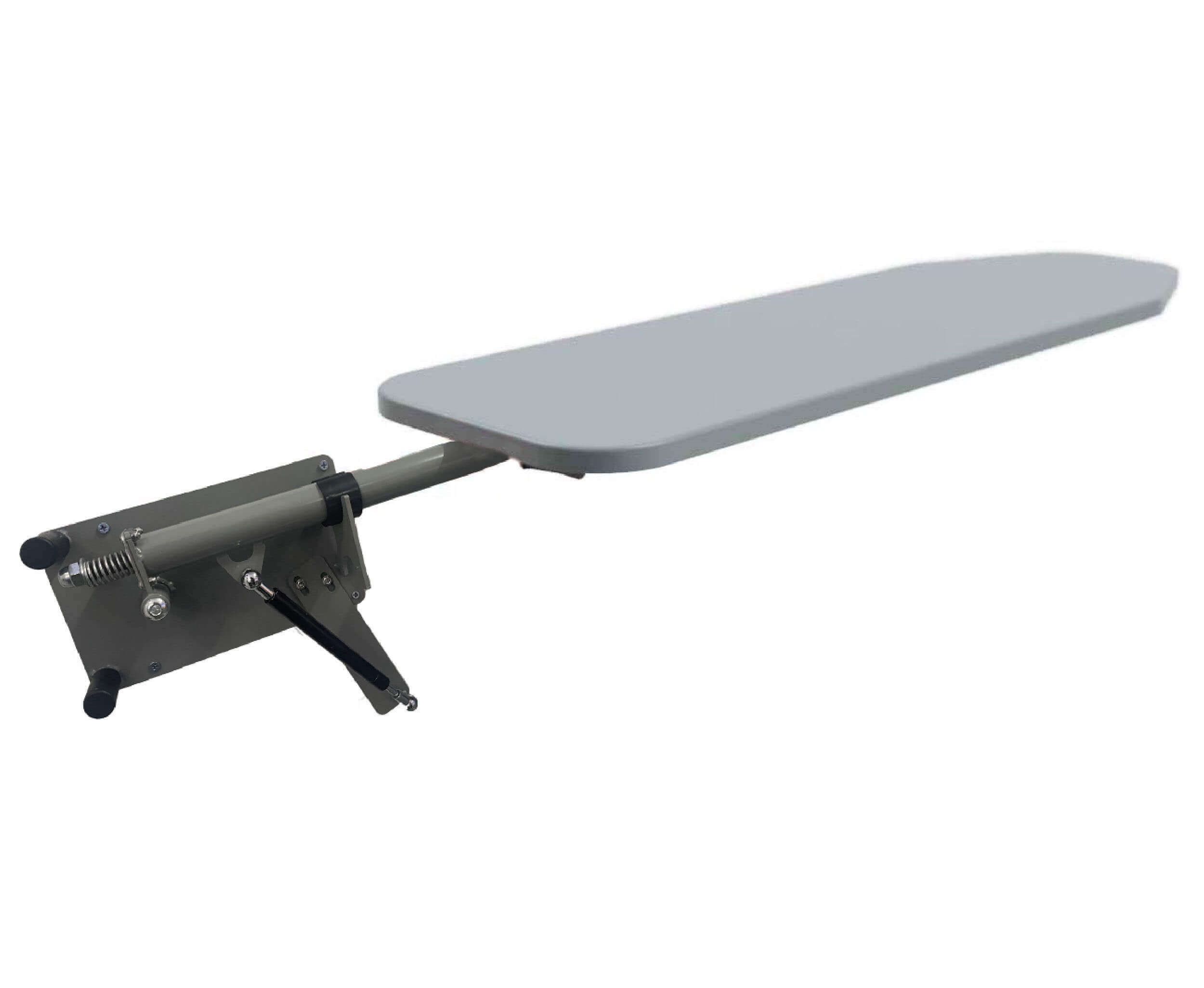

A cabinet-mounted ironing board that folds vertically into a wardrobe or closet. The pull-down, rotating mechanism creates a stable ironing surface without occupying permanent floor space. VENACE supplies this built-in model for cabinet and hospitality projects, with wholesale enquiries reviewed against installation requirements.
- Folds vertically inside a wardrobe or closet
- Pull-out and fold-down movement for cabinet integration
- Gas-spring supported metal mechanism
Product overview
A concealed ironing station for cabinet projects
The board mounts to a suitable wardrobe or closet side panel. Pull it down from its vertical storage position, extend the working surface and rotate it into position for ironing.
When finished, reverse the movement and return the board to the cabinet. The floor remains clear and the ironing station stays close to clothing storage.
Product video
Built-in cabinet ironing board in use
Watch a short lifestyle view of an ironing board integrated into a wardrobe. The original English voiceover is retained.
This video shows a built-in cabinet application. Confirm the operating mechanism and dimensions for item 33.35.30600100 against the current product drawing.
Product advantages
Designed for wardrobes, closets and fitted furniture
Practical features for cabinet manufacturers, furniture brands, distributors and project buyers.
Concealed vertical storage

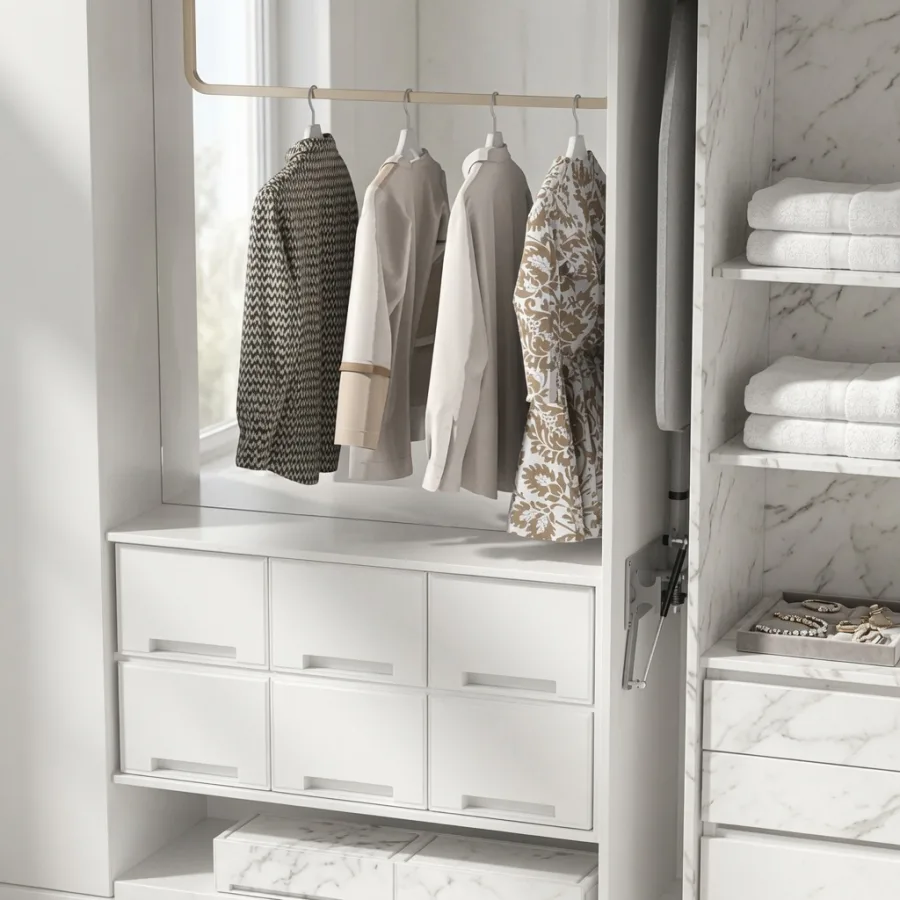

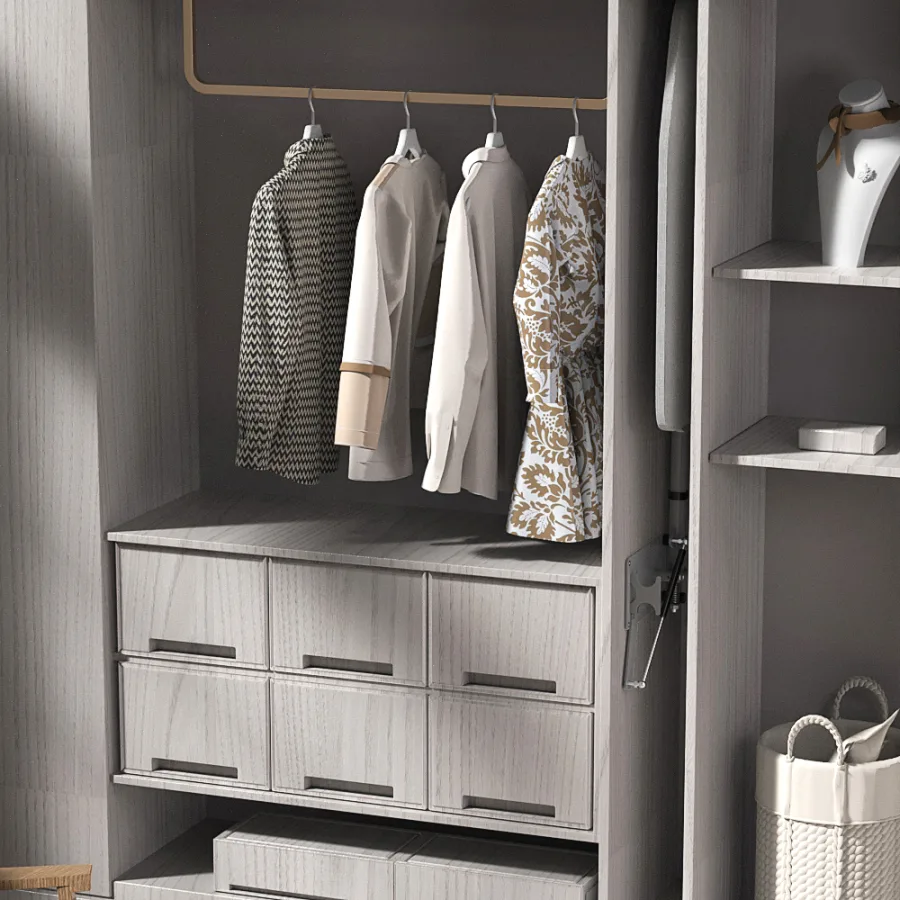

The board stores upright inside the cabinet, helping preserve usable floor and circulation space.
Cabinet work surface
Pull the board from storage and move it into the working position. Confirm the current operating range against the approved drawing; this model is not specified as a 180° rotating product.

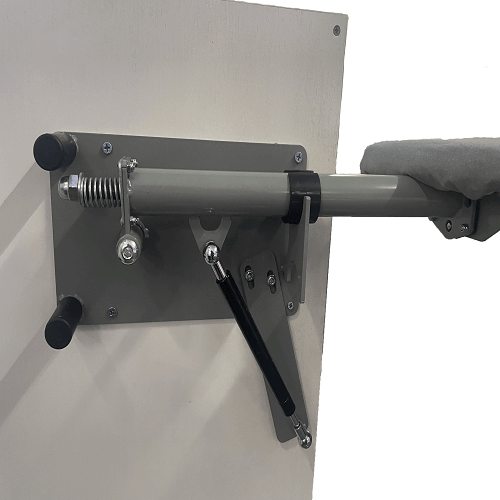

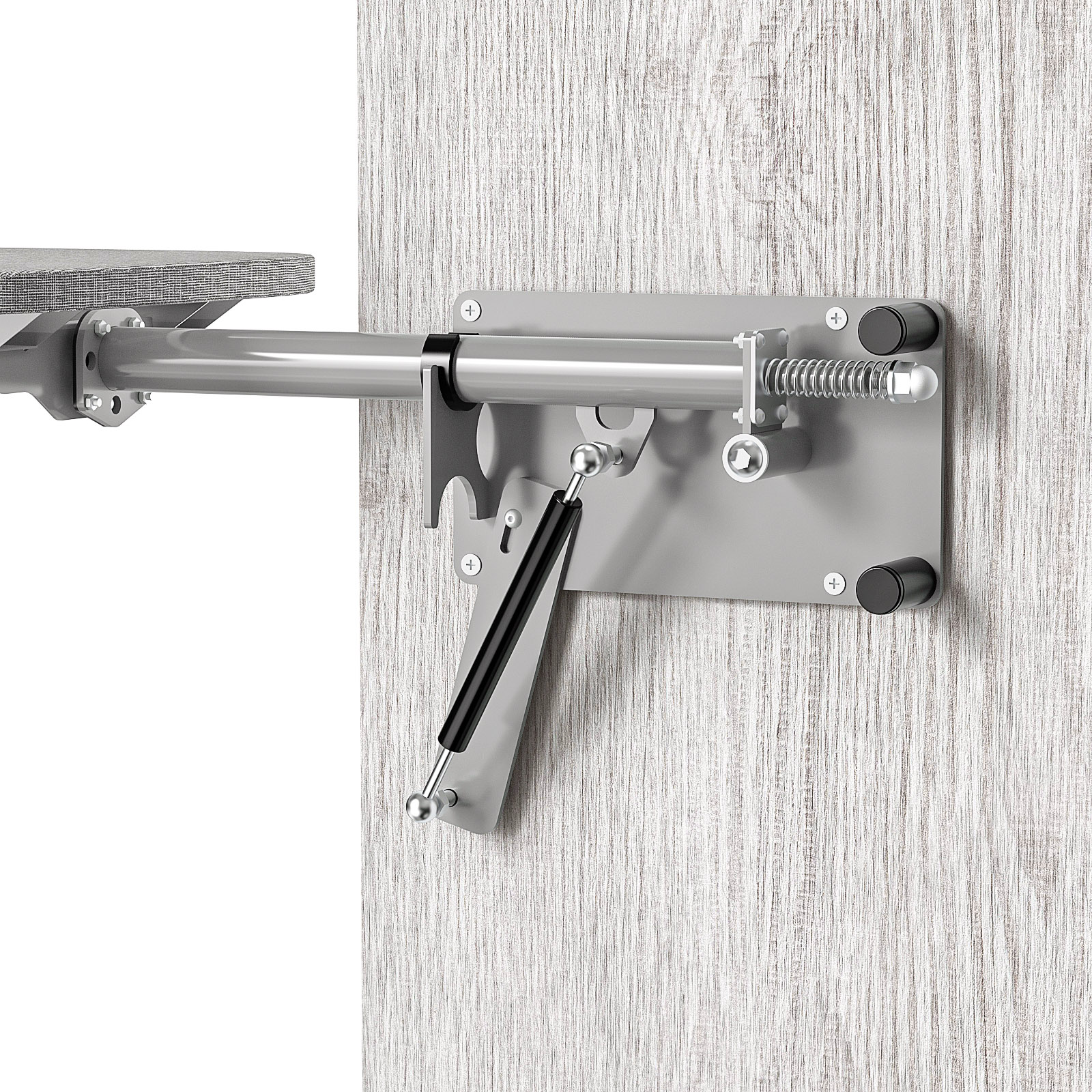

Gas-spring assistance
The gas spring supports the operating mechanism during opening, positioning and storage.
Metal support structure
A thick-walled metal frame provides the rigid base required for a built-in ironing station.
Heat-resistant cover
The standard cotton cover is removable and heat resistant. A flame-retardant cover is available as a customization option.

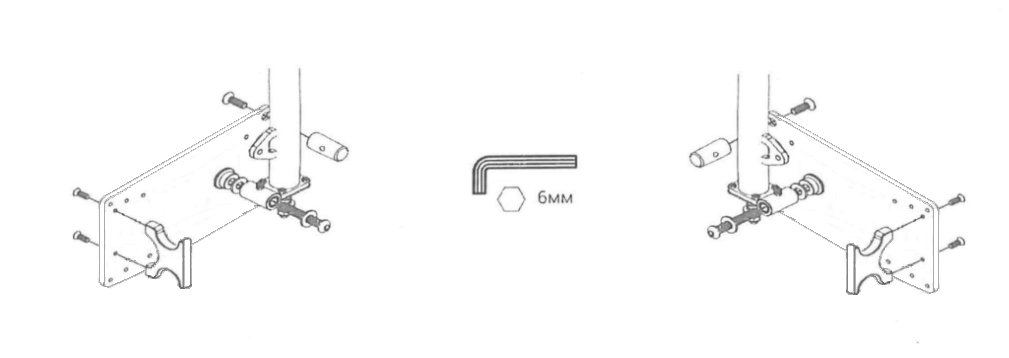

Left or right installation
The assembly diagram supports mounting on either side of a suitable wardrobe or closet compartment.
Specifications
Built-in ironing board specifications
| Product type | Cabinet / closet built-in ironing board |
|---|---|
| Item number | 33.35.30600100 |
| Board size | 800 × 335 mm (approximately 31.50 × 13.19 in) |
| Product size | 1383 × 392 × 76 mm (approximately 54.45 × 15.43 × 2.99 in) |
| Frame material | Iron / thick-walled metal |
| Operation | Pull-out and fold-down mechanism; not specified as a 180° rotating product |
| Heat resistance | 210 ± 10°C |
| Load capacity | 55 lb (25 kg) |
| Standard cover | Removable heat-resistant cotton cover |
| Optional cover | Flame-retardant cotton cover, subject to order confirmation |
| Net / gross weight | 6.2 kg / 7 kg |
| Package size | 830 × 360 × 130 mm |
Product values are based on the supplied manual and the referenced VENACE product record. Confirm final specification, cover option and packaging before production.
Cabinet planning

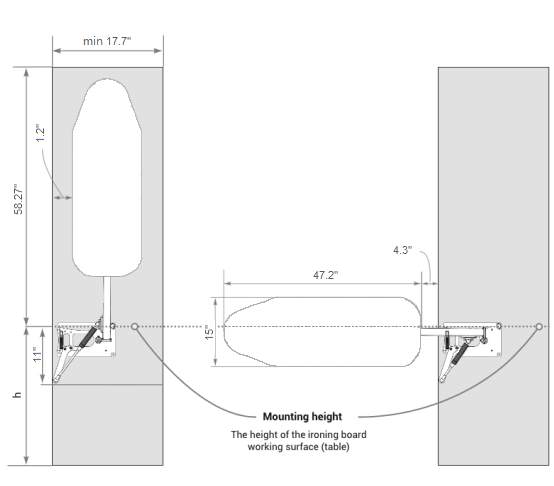

Check the installation space before ordering
The cabinet must provide enough vertical storage space, operating clearance and a load-bearing mounting surface.
Internal fit
Check the cabinet’s usable internal width against the current approved installation drawing before machining.
Opening clearance
Check vertical storage and the full opening path against the current approved installation drawing.
Secure substrate
The wardrobe must be firmly fixed and the side panel must be reinforced where required for the board and operating load.
Door hinges, shelves and adjacent fittings must not block the full opening path. Final cabinet dimensions should be checked against the current technical drawing before machining.
Product views

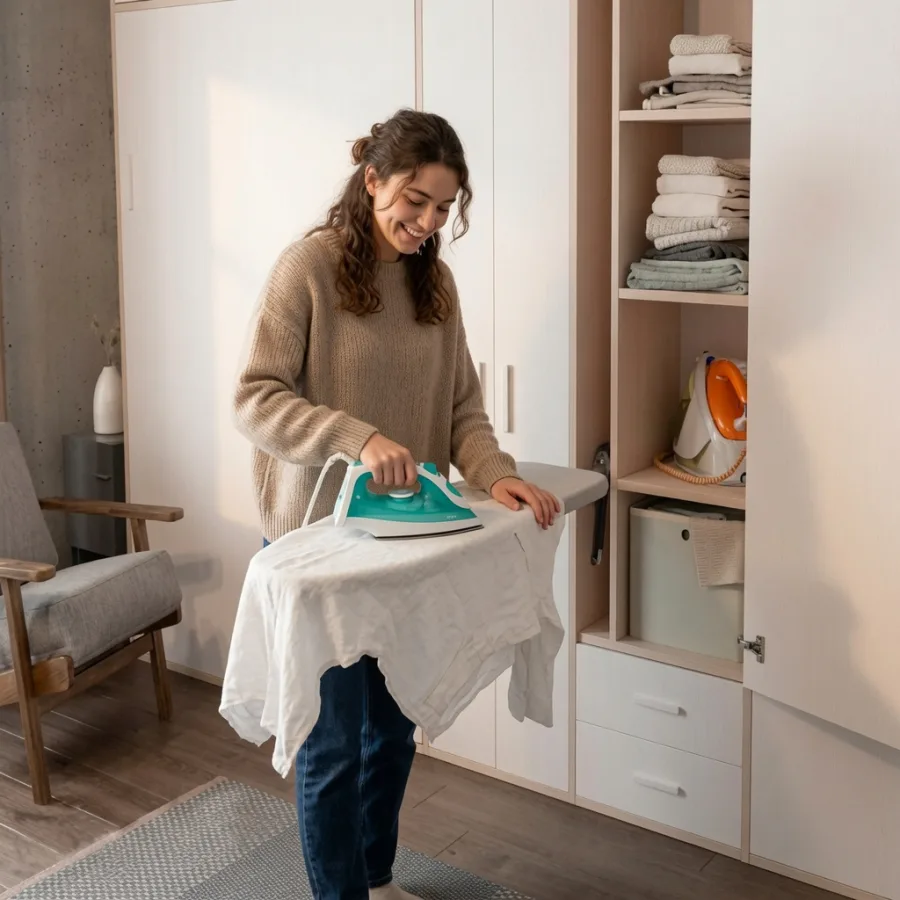

Working, stored and cabinet-integrated positions
Review how the board operates inside fitted furniture and how little space it occupies after storage.
Installation

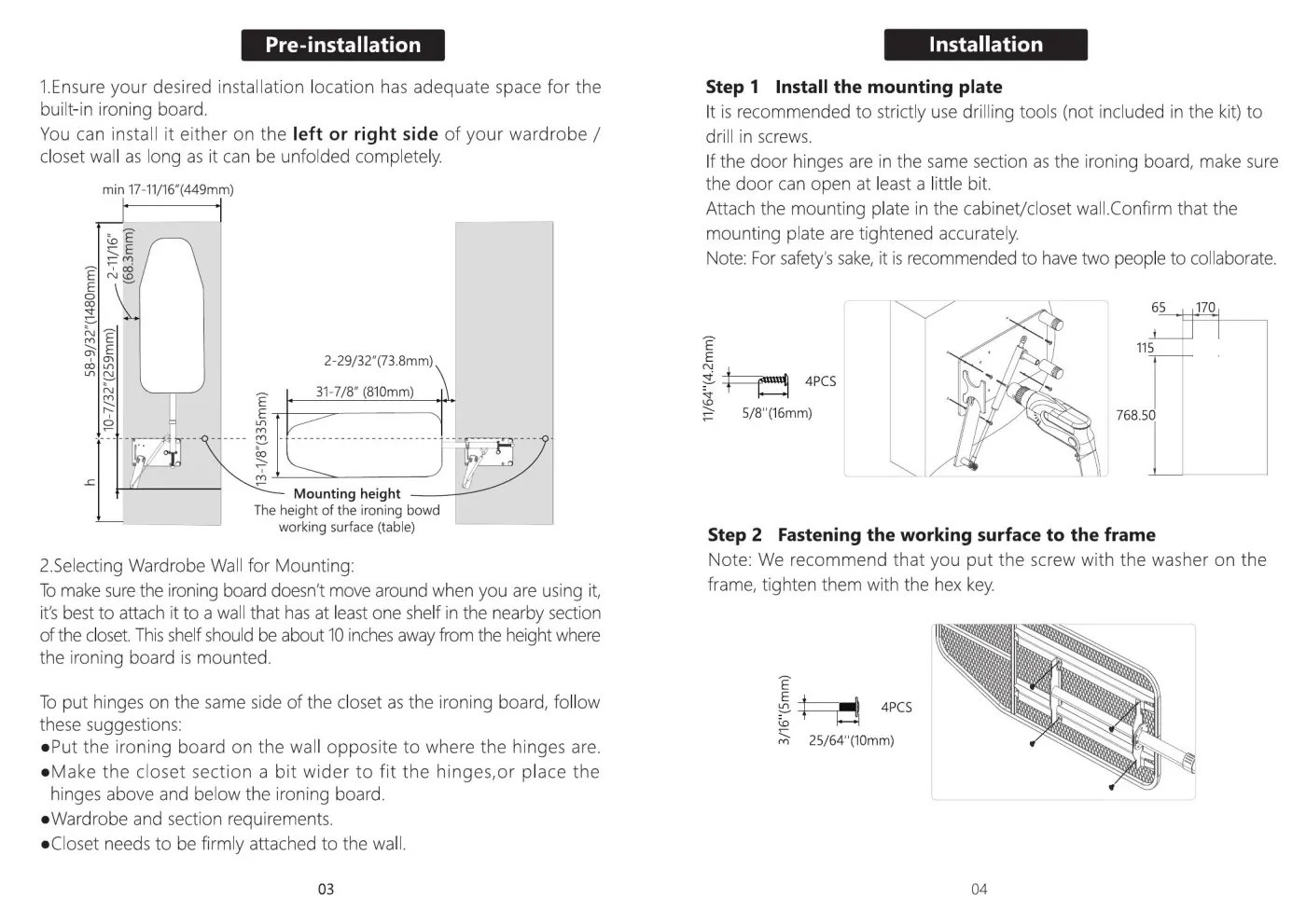

Four-stage cabinet installation
Installation should follow the supplied technical guide and the construction of the cabinet.
- Confirm the compartment.

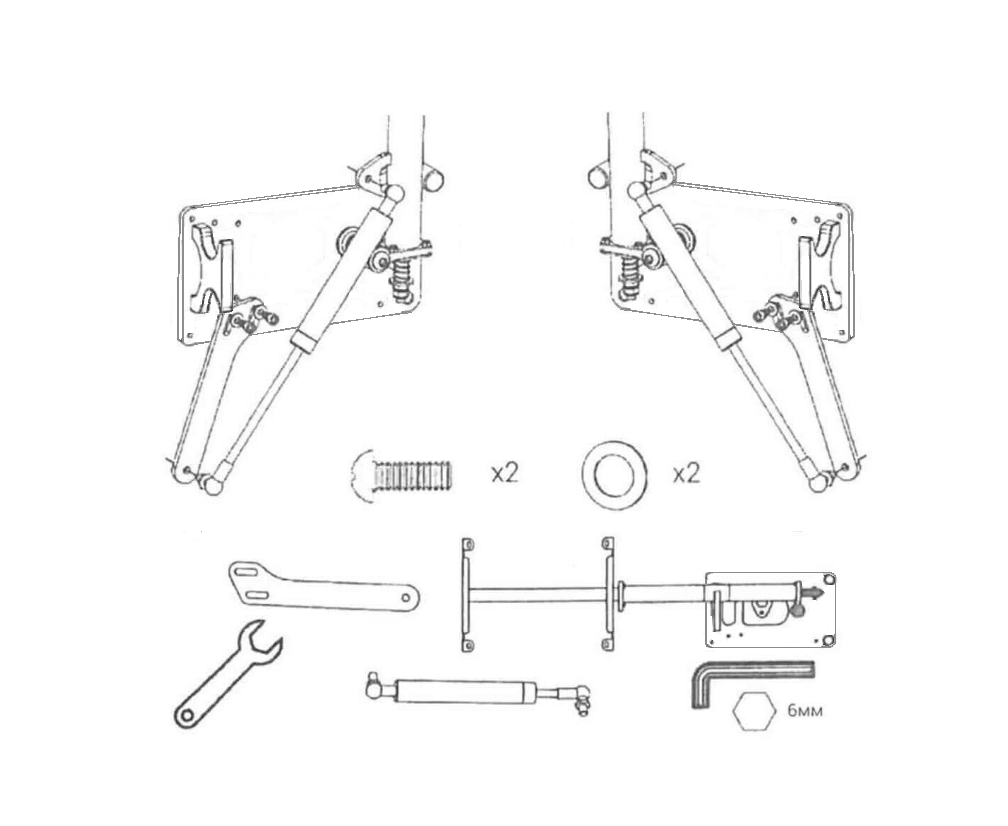

Check board clearance, shelf position, hinges and the selected left- or right-side mounting. - Install the mounting plate.

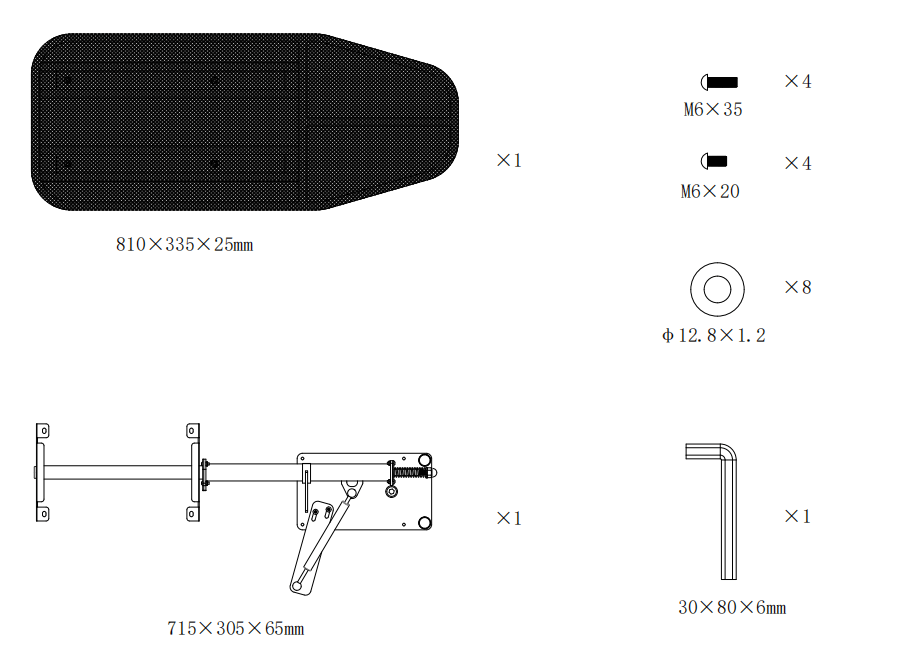

Drill the specified fixing points and secure the plate to a suitable reinforced cabinet wall. - Fasten the work surface.

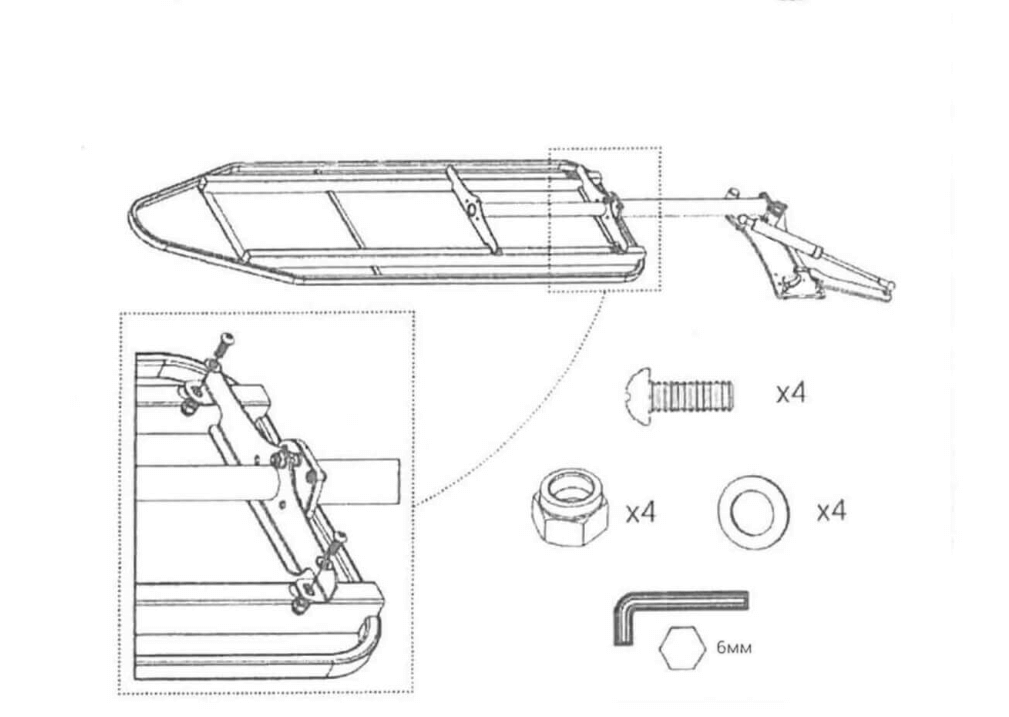

Attach the ironing board to the frame using the specified bolts, washers and hex key. - Set height and test.
Fix the frame to the plate, then test the gas spring, full operating movement and storage before use.
For safety, the manual recommends two people during installation. Drilling tools are not included.
How it works
Open, iron and store
- Pull the ironing board down from its vertical cabinet position.
- Move the work surface outward into its working position.
- After ironing, reverse the operating movement.
- Push the board back into the wardrobe or closet.
Applications
Suitable for cabinet and furniture projects
- Custom wardrobes and walk-in closets
- Laundry cabinets and utility-room storage
- Apartments and space-conscious residential projects
- Hotels, serviced apartments and fitted furniture projects
- Cabinet brands, furniture importers and distributors
Information for a B2B quotation
- Estimated order quantity
- Target market and cabinet application
- Required cover specification
- Packaging or private-label requirements
- Destination port and delivery timeline
Frequently asked questions
Built-in ironing board FAQ
What is the size of the ironing surface?
The ironing surface measures 800 × 335 mm, approximately 31.50 × 13.19 inches. The overall product size is 1383 × 392 × 76 mm, approximately 54.45 × 15.43 × 2.99 inches.
Can the board be installed on either side of a wardrobe?
Yes. The supplied assembly diagram shows left- and right-side mounting. The selected cabinet compartment must allow the board to unfold completely without interference from hinges or shelves.
How does the board move from storage to use?
Pull the board down from its vertical storage position and move the work surface into the ironing position. Confirm the current movement and operating range against the approved drawing; this model is not specified as a 180° rotating product.
Is the cover flame retardant?
The standard configuration is described as a removable heat-resistant cotton cover. A flame-retardant cotton cover is available as a customization option and should be confirmed before ordering.
How much cabinet space is required?
The product size is 1383 × 392 × 76 mm. Required internal width, vertical clearance and mounting positions must be checked against the current approved installation drawing before machining.
Who should install the built-in ironing board?
Installation should be completed by an experienced cabinet installer using fixings suited to the cabinet construction. The manual recommends two people for safe installation.
How do I request wholesale or OEM information?
Send VENACE your company, country, estimated quantity, target market, cover requirements, packaging needs and delivery destination.
Request a quote
Discuss your built-in ironing board project
Tell VENACE your quantity, cabinet design, target market, cover requirements and delivery destination. We will confirm the applicable specification and quotation details.
What should buyers verify before specifying a built-in board?
A built-in ironing board is a cabinet-integrated board stored inside a wardrobe or closet. Confirm internal width, vertical clearance, substrate, rotation path, working height and intended users before machining or approving a bulk order.
Reference points for planning
CCOHS recommends using elbow height as a guide when setting standing work height. GINETEX explains that the garment care label sets the maximum ironing temperature. Use these references for planning, then confirm model-specific drawings and cover requirements with VENACE.
