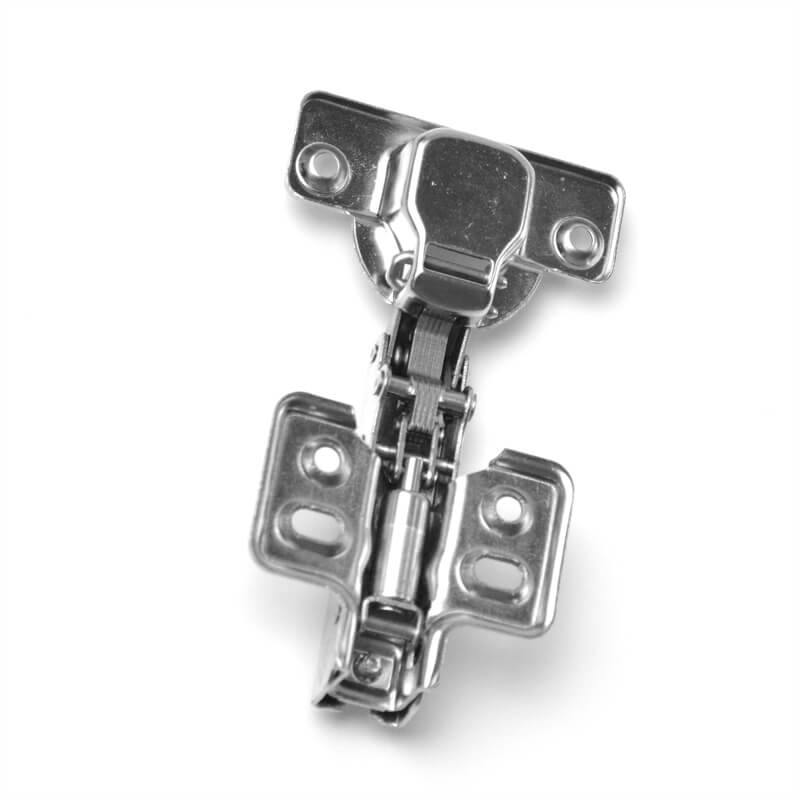

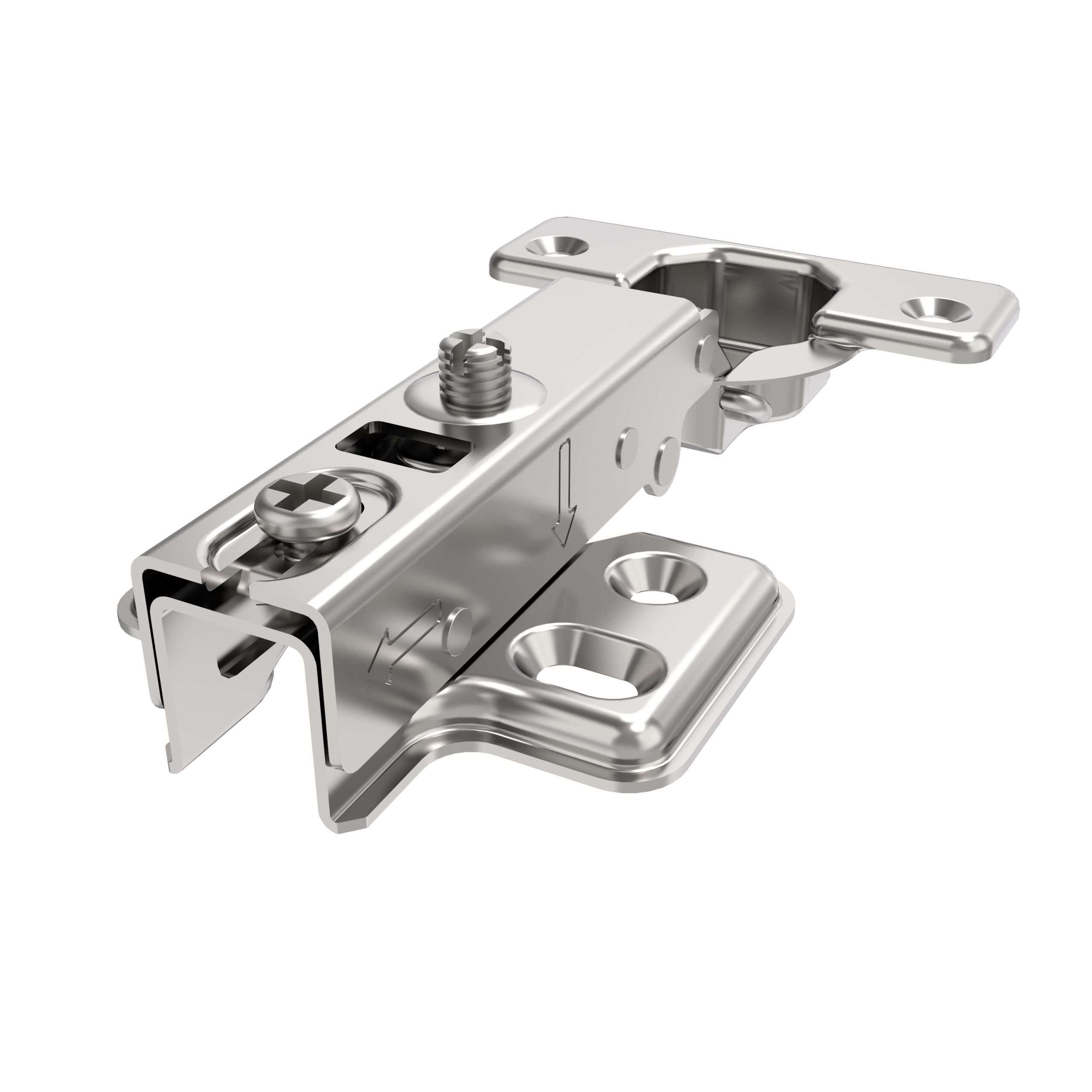

35Φ Soft Close Concealed Hinge

ITEM NO: 9.03.001351

35Φ hinge is one of the most widely used cabinet hardware. According to installation methods, there are three types: full overlay hinge, half overlay hinge, and inserted hinge. This product comes with hydraulic damping function.

Description

Product Description

35Φ Soft Close Concealed Hinge

  • Three types of 35Φ fix type hydraulic hinge: full overlay hinge, half overlay hinge, and inserted hinge. A customized logo is acceptable.
  • High-quality steel and strengthened spring for long service life. A soft damper helps to close the door automatically when the door is within a certain angle.
  • Multi-layer chrome plating of the product surface with strong corrosion resistance and anti-oxidation ability.
  • Accurate size and outstanding product consistency come from automated production lines.
  • Suitable for use on the doors of cabinets.
  1. Appearance: no defects such as rough plating, bubbles, pinholes, peeling, cracks, stains, discoloration, and partial absence of plating, etc. Slight water stains on the hinge and the situation that non-major surfaces are slightly rough and uneven in color are permissible.
  2. Usability: No jamming or friction sound when opening and closing the hinge. No oil leakage from the hydraulic cylinder.
  3. Adjustability: The hinge can be adjusted in the range of ±2mm from front to back, left to right, and up to down.
  4. Opening Angle: The angle of the open hinge shall not be less than 105°.

SKU

Product Name

Materia

Surface Treatmen

Diameter of Hinge Cup

Optional Base

Opening Angle

Net Weight (g)

9.03.001351

35Φ Soft Close Concealed Hinge – Full Overlay

Steel

Chrome plating

35 mm

2 holes or 4 holes

105°

73

9.03.001352

35Φ Soft Close Concealed Hinge – Half Overlay

Steel

Chrome plating

35 mm

2 holes or 4 holes

105°

73

9.03.001353

35Φ Soft Close Concealed Hinge – Inserted

Steel

Chrome plating

35 mm

2 holes or 4 holes

105°

73

  • OEM and customized logo are acceptable.

SKU

Sets/ CTN

Net Weight / CTN (kg)

Gross Weight / CTN (kg)

Package Size (mm)

Sets / 20 GP

Sets / 20 GP

Sets / 40 HP

9.03.001351

200

14.6

15

420 * 280 * 180

226000

306600

346600

9.03.001352

200

14.6

15

420 * 280 * 180

226000

306600

346600

9.03.001353

200

14.6

15

420 * 280 * 180

226000

306600

346600

The above container load quantity is the reference value.

The hydraulic soft-close buffer mechanism is a modern mechanical technology, which helps the door and drawer to close more slowly and prevents the drawer or door from being damaged or broken when it is closed forcibly. At present, most advanced decorations or cabinets will use this mechanism.
Compared with ordinary concealed hinges, soft-close concealed hinges have the following advantages:
1. Prevent noise when you close the cabinet door
The banging of the kitchen cabinet doors may be a common experience in your kitchen. Even sometimes, you usually know that this kind of noise will be made when you close the cabinet door, but you still have no choice but to close it. However, soft close concealed hinges can help people solve this problem.
2. Improve the service life of the cabinet and make the cabinet more durable
If you want to increase the service life of your kitchen cabinets, you need to reduce the wear and tear of the cabinets. This can be easily achieved with professional hinges. When you use the soft closing mechanism, you can prevent the cabinet door from being damaged, and the soft closing hinge will increase the service life of the cabinet by more than 20%. It ensures that your cabinet door closes gently, which can reduce physical pressure, thereby preventing unnecessary door impact damage.
3. Promote cost-effective kitchen remodeling
Homeowners who are planning to remodel the kitchen should add high-quality cabinet accessories to the plan, such as soft-close drawer slides and soft-close hinges. Studies have shown that kitchen cabinets generally account for 50% of the total expenditure on kitchen renovation. Although soft-close hinges are not necessarily cheaper than traditional hinges, they can save you from repairing or replacing them for many years. From a long-term investment point of view, it is a cost-effective investment.
4. Effectively ensure user safety
By using soft-close cabinet hinges, the kitchen cabinet door will close gently without hurting the user’s fingers. This protects your safety to a certain extent and reduces unnecessary injuries.
5. Increase house value
When you are planning to sell your house, the kitchen is generally the most concerned part of buyer. If your cabinets all use high-end soft-close concealed hinges, this will greatly add value to your kitchen.
6. Keep things in the drawer in place
When you use the soft-close kitchen cabinet hinges, your cabinet will not make a bang when it is closed, nor will the contents of the cabinet fly up after the door and the cabinet collide, and everything will remain intact.

35Φ Soft Close Concealed Hinge

  • Three types of 35Φ fix type hydraulic hinge: full overlay hinge, half overlay hinge, and inserted hinge. A customized logo is acceptable.
  • High-quality steel and strengthened spring for long service life. A soft damper helps to close the door automatically when the door is within a certain angle.
  • Multi-layer chrome plating of the product surface with strong corrosion resistance and anti-oxidation ability.
  • Accurate size and outstanding product consistency come from automated production lines.
  • Suitable for use on the doors of cabinets.
  1. Appearance: no defects such as rough plating, bubbles, pinholes, peeling, cracks, stains, discoloration, and partial absence of plating, etc. Slight water stains on the hinge and the situation that non-major surfaces are slightly rough and uneven in color are permissible.
  2. Usability: No jamming or friction sound when opening and closing the hinge. No oil leakage from the hydraulic cylinder.
  3. Adjustability: The hinge can be adjusted in the range of ±2mm from front to back, left to right, and up to down.
  4. Opening Angle: The angle of the open hinge shall not be less than 105°.

SKU

Product Name

Materia

Surface Treatmen

Diameter of Hinge Cup

Optional Base

Opening Angle

Net Weight (g)

9.03.001351

35Φ Soft Close Concealed Hinge – Full Overlay

Steel

Chrome plating

35 mm

2 holes or 4 holes

105°

73

9.03.001352

35Φ Soft Close Concealed Hinge – Half Overlay

Steel

Chrome plating

35 mm

2 holes or 4 holes

105°

73

9.03.001353

35Φ Soft Close Concealed Hinge – Inserted

Steel

Chrome plating

35 mm

2 holes or 4 holes

105°

73

  • OEM and customized logo are acceptable.

SKU

Sets/ CTN

Net Weight / CTN (kg)

Gross Weight / CTN (kg)

Package Size (mm)

Sets / 20 GP

Sets / 20 GP

Sets / 40 HP

9.03.001351

200

14.6

15

420 * 280 * 180

226000

306600

346600

9.03.001352

200

14.6

15

420 * 280 * 180

226000

306600

346600

9.03.001353

200

14.6

15

420 * 280 * 180

226000

306600

346600

The above container load quantity is the reference value.
The hydraulic soft-close buffer mechanism is a modern mechanical technology, which helps the door and drawer to close more slowly and prevents the drawer or door from being damaged or broken when it is closed forcibly. At present, most advanced decorations or cabinets will use this mechanism. Compared with ordinary concealed hinges, soft-close concealed hinges have the following advantages: 1. Prevent noise when you close the cabinet door The banging of the kitchen cabinet doors may be a common experience in your kitchen. Even sometimes, you usually know that this kind of noise will be made when you close the cabinet door, but you still have no choice but to close it. However, soft close concealed hinges can help people solve this problem. 2. Improve the service life of the cabinet and make the cabinet more durable If you want to increase the service life of your kitchen cabinets, you need to reduce the wear and tear of the cabinets. This can be easily achieved with professional hinges. When you use the soft closing mechanism, you can prevent the cabinet door from being damaged, and the soft closing hinge will increase the service life of the cabinet by more than 20%. It ensures that your cabinet door closes gently, which can reduce physical pressure, thereby preventing unnecessary door impact damage. 3. Promote cost-effective kitchen remodeling Homeowners who are planning to remodel the kitchen should add high-quality cabinet accessories to the plan, such as soft-close drawer slides and soft-close hinges. Studies have shown that kitchen cabinets generally account for 50% of the total expenditure on kitchen renovation. Although soft-close hinges are not necessarily cheaper than traditional hinges, they can save you from repairing or replacing them for many years. From a long-term investment point of view, it is a cost-effective investment. 4. Effectively ensure user safety By using soft-close cabinet hinges, the kitchen cabinet door will close gently without hurting the user’s fingers. This protects your safety to a certain extent and reduces unnecessary injuries. 5. Increase house value When you are planning to sell your house, the kitchen is generally the most concerned part of buyer. If your cabinets all use high-end soft-close concealed hinges, this will greatly add value to your kitchen. 6. Keep things in the drawer in place When you use the soft-close kitchen cabinet hinges, your cabinet will not make a bang when it is closed, nor will the contents of the cabinet fly up after the door and the cabinet collide, and everything will remain intact.
