35 Ф Soft Close Butterfly Plate Concealed Hinge
(2 customer reviews)

ITEM NO: 44.42.00100711

35Φ cabinet hinges are one of the most widely used cabinet hardware. According to installation methods, there are three types: full overlay, half overlay, and inserted hinge, and with wing-type base. This product comes with a hydraulic damping function.

Category:
Description

Description

inset cabinet door hinges

Adjusting Cabinet Hinge

  • Three types of 35Φ fix type hydraulic hinge: full overlay hinge, half overlay hinge, and inserted hinge. A customized logo is acceptable.
  • High-quality steel and strengthened spring for long service life. A soft damper helps to close the door automatically when the door is within a certain angle.
  • Multi-layer chrome plating of the product surface with strong corrosion resistance and anti-oxidation ability.
  • Accurate size and outstanding product consistency come from automated production lines.
  • Suitable for use on the doors of cabinets.
  1. Appearance: no defects such as rough plating, bubbles, pin holes, peeling, cracks, stains, discoloration, and partial absence of plating, etc. Slight oil stains on the hinge and the situation that non-major surfaces are slightly rough and uneven in color are permissible.
  2. Usability: No jamming or friction sound when opening and closing the hinge.
  3. Adjustable: The hinge can be adjusted in the range of ±2mm from front to back, left to right, and up to down.
  4. Opening Angle: The angle of the open hinge shall not be less than 105°.
hinge manufacturers
adjusting cabinet hinges
full overlay hinge
inset door hinges

Product Name

35Φ Soft Close Butterfly Plate Concealed Hinge

Type

Full overlay, Half overlay, Inserted

Material

Steel

Finish

Nickel-plated

Diameter of Hinge Cup

35 mm

Opening Angle

95°

Door Thickness

14-24 mm

Optional Base

4 holes

SKU

Product Name

Net Weight(g)

Opening Angle

44.42.00100711

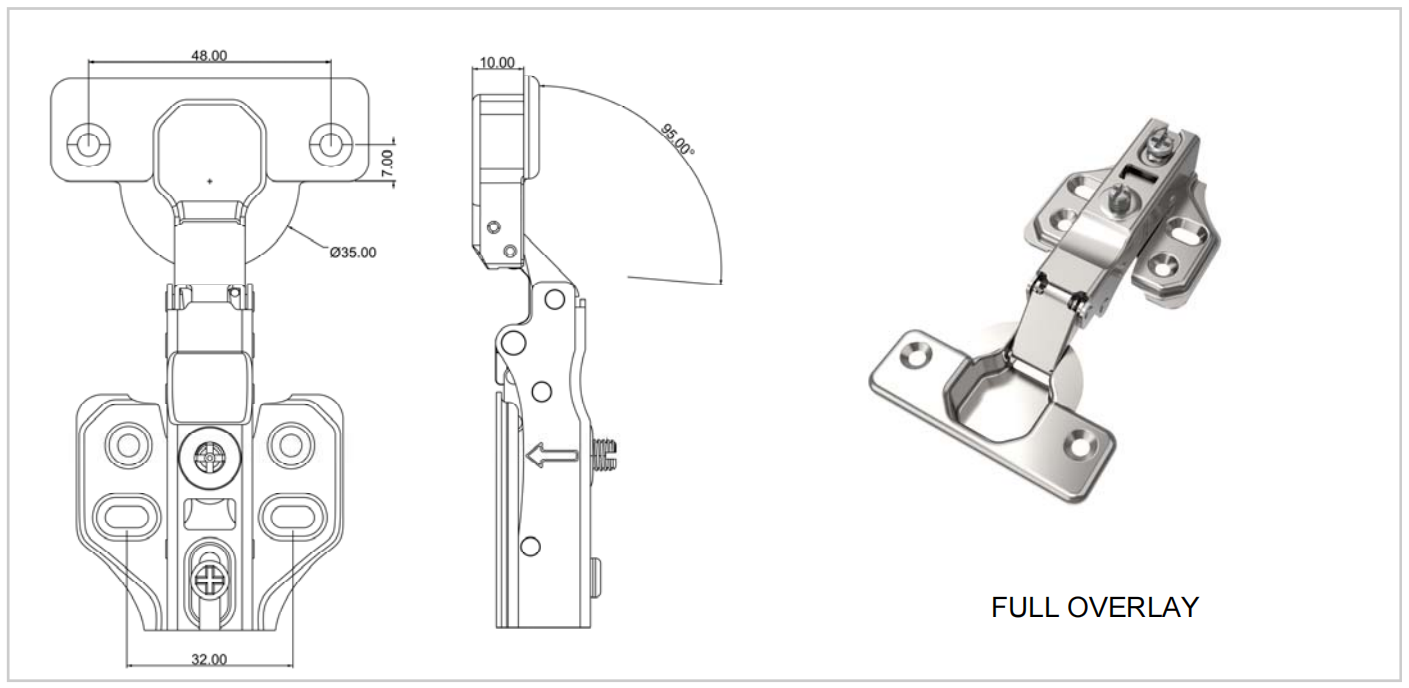

35 Φ Soft Close Butterfly Plate Concealed Hinge -Full Overlay

74±2

95°

44.42.00100712

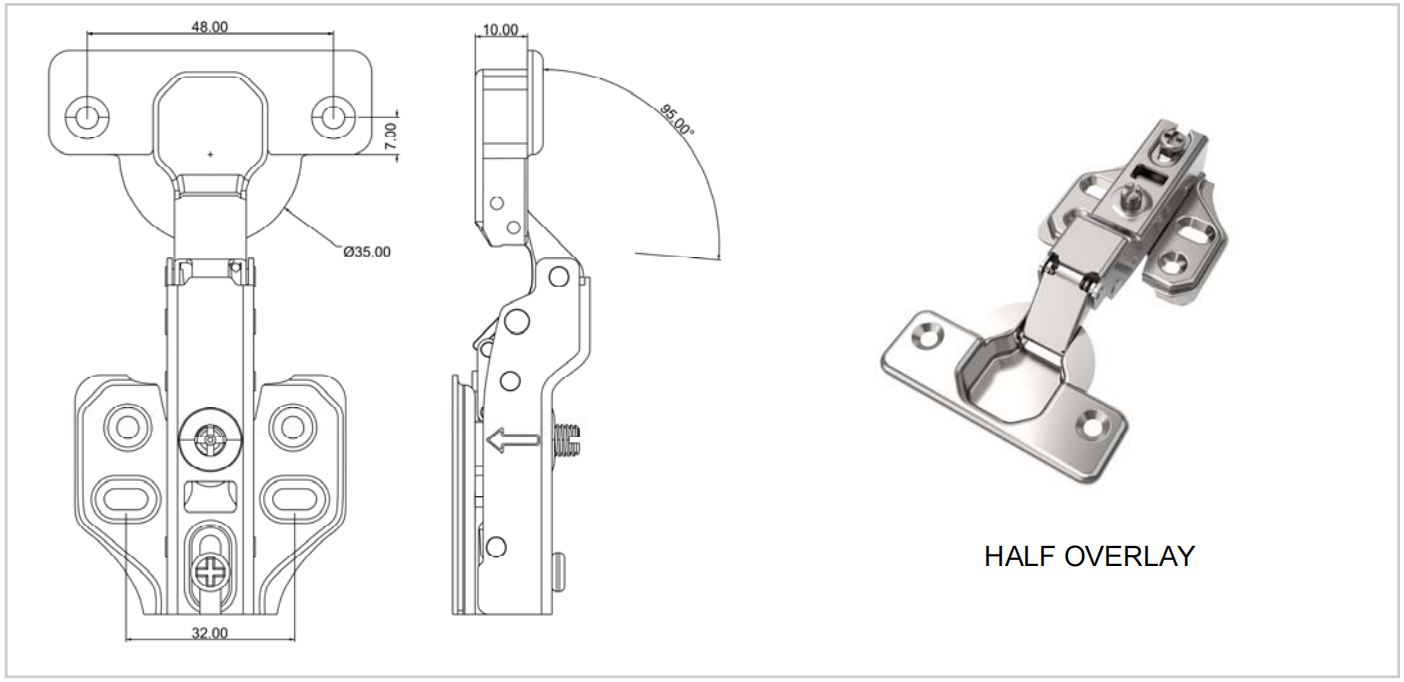

35 Φ Soft Close Butterfly Plate Concealed Hinge -Half Overlay

74±2

95°

44.42.00100713

35 Φ Soft Close Butterfly Plate Concealed Hinge -Inserted

74±2

95°

wholesale hinges
  • OEM and customized logo are acceptable.

SKU

PCS/
CTN

Net Weight/
CTN (kg)

Gross Weight/
CTN (kg)

Package Size
(mm)

PCS/
20 GP

PCS/

40 GP

PCS/
40HP

44.42.00100711

200

14.8

15.3

450*260*155

222000

300000

340000

44.42.00100712

200

14.8

15.3

450*260*155

222000

300000

340000

44.42.00100713

200

14.8

15.4

450*260*175

220000

298000

337000

The above container load quantity is the reference value.
