3 Section Ball Bearing Drawer Slides
(2 customer reviews)

ITEM NO: 44.41.00104312

This 3 section ball bearing drawer slide is side mounted with full extension. It is available in various sizes from 12’’ to 24’’.

Category:
Description

Description


3 Section Ball Bearing Drawer Slides



Ball Bearing Drawer Slides Manufacturer

  • 3 section ball bearing full-extension drawer slide, various sizes from 12’’ to 24’’, customized logo acceptable.
  • 50-58 HRC hardness of the slide, and grade 3 or more roundness of solid steel balls for smooth operation.

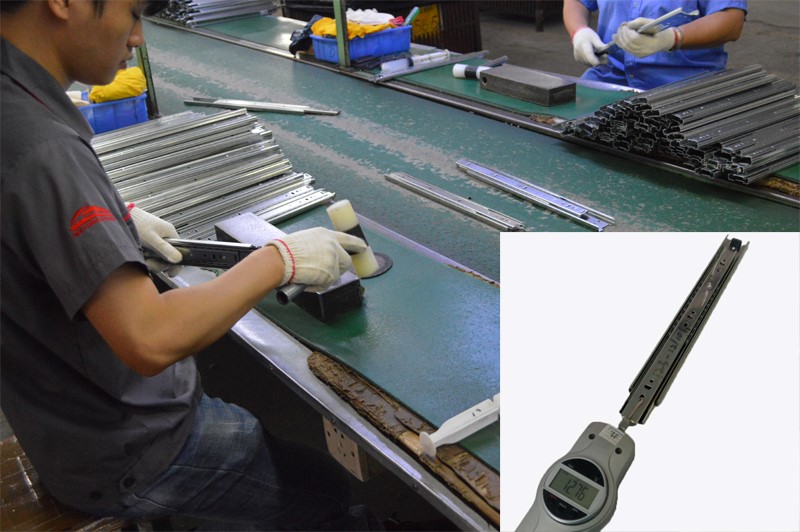

  • Automatic assembled on the production lines under strict error control.
  • Strong anti-oxidation ability with multi-layer electroplating.
  • Suitable for office appliances, cabinets and household drawers.



Key Points of Professional Ball Bearing Slide Manufacturer

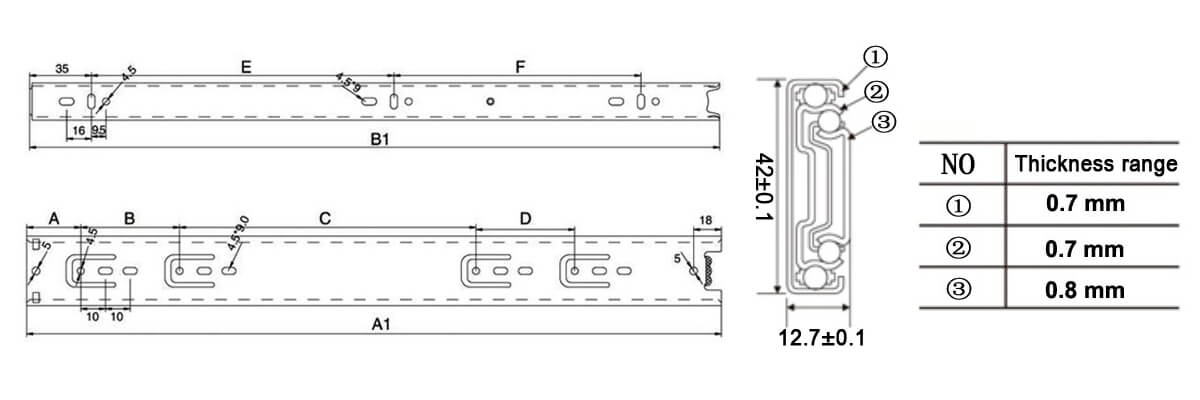

Size: 45mm three-section ball bearing slide, including a drawer member, an intermediate member and a cabinet member. The error range is ±0.05mm.
Salt Spray Test: it has passed 48 hours salt spray test without rust.
The thickness of Steel Ball: 4.7 mm in diameter; 12.7±0.3 mm thick cross-section of the slide.
Steel Plate Hardness: 55-70 degrees on the Rockwell scale.
Plastic Parts: pure and non-recycled plastic materials are used.



For 12″-24″ wide cabinets:

SKU

Size

A1(mm)

B1(mm)

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

44.41.00104312

12”

300

297

35

64

128

96

128

44.41.00104314

14”

350

347

35

64

96

64

128

128

44.41.00104316

16”

400

397

35

64

160

64

160

160

44.41.00104318

18”

450

447

35

64

192

64

160

192

44.41.00104320

20”

500

497

35

64

256

64

192

224

44.41.00104322

22”

550

547

35

64

288

64

224

224

44.41.00104324

24”

600

597

35

64

352

64

224

288




  • The holes of the ball bearing slide are U-shaped, please pay special attention to the hole position when ordering.
  • The ball-bearing drawer slides are not soft close (non-damping) drawer slides, please specify if you need soft-close drawer slides.



SKU

Pairs/
CTN

Net Weight

Gross Weight

Package Size
(mm)

PCS/
20 GP

PCS/
40 GP

PCS/
40HP

44.41.00104312

20

22.71lbs / 10.3kg

23.15lbs / 10.5kg

315 * 180 * 135

30240


43200

47520


44.41.00104314

20

26.46lbs / 12kg

26.90lbs / 12.2kg

365 * 180 * 135

25200

36000

39600

44.41.00104316

20

31.97lbs / 14.5kg

32.41lbs / 14.7kg

415 * 180 * 135

20160


28800

31680

44.41.00104318

20

36.16lbs / 16.4kg

36.60lbs / 16.6kg

465 * 180 * 135

20160

25920

28800

44.41.00104320

20

39.46lbs / 17.9kg

39.90lbs / 18.1kg

515 * 180 * 135

16800

24000

26400

44.41.00104322

20

41.67lbs / 18.9kg

42.11lbs / 19.1kg

565 * 180 * 135

16800

24000

26400

44.41.00104324

20

45.52lbs / 20.65kg

45.97lbs / 20.85kg

615 * 180 * 135

14400

21600

21600

The above container load quantity is the reference value.



If the cabinet hinge is the heart of the cabinet, then the cabinet ball bearing slides are the kidney. The cabinet of large and small drawers can be free and smooth to push and pull, how the weight-bearing, all rely on the support of the ball bearing furniture slides. From the view of current technology, the bottom-mounted slide is better than the side-mounted slide, the whole connection with the drawer is better than the three-point connection one. The material, principle, structure and process of ball bearing drawer slides vary widely, and the quality ball bearing drawer guides have low resistance, long life and smooth draw-off.

Classification

The most mainstream will be divided into roller slide, ball bearing drawer slide, and gear slider respectively, representing different stages of evolution of slides. Roller slides appeared a long time ago, for the first generation of silent drawer slides, currently in the cabinet use has been slowly replaced by the ball-bearing drawer slides.
The Roller slide structure is relatively simple, by a pulley, two tracks, can cope with the daily push and pull needs, but the load-bearing capacity is poor, also does not have a buffer and rebound function, commonly used with computer keyboard drawer, light drawer.

Gear slide is hidden drawer slide, riding horse drawer slide and other slide types belongs to the high-grade slide, the use of gear structure so that the slide is very smooth and synchronized, such slide also has a soft-close or press the rebound open function, mostly used in the high-grade furniture.

Ball bearing drawer slide is basically a two-section, three-section drawer slide, more commonly installed on the side of the drawer, installation is relatively simple, space-saving. Good quality ball bearing glides can ensure smooth pushing and pulling, load-bearing capacity, such drawer slides can have soft-close or touch release. Ball bearing slide has become the main force of modern cabinet and closet slide.

ball bearing drawer slides


3 section ball bearing drawer slides


At present, the most used in cabinet accessories is the 3 section ball bearing drawer slides. This drawer slide structure will include three members, with an intermediate member located between the cabinet and drawer members. Only the drawer and intermediate members move; while the cabinet member remains fixed to its location within the cabinet structure.

A Self-Close drawer slide, also includes a closing device, with springs, but does not include a damping cylinder. The engagement of the drawer member is similar, and once engaged with the device, the drawer quickly closes at the last inches of closing distance.

Self-Close drawer slide

Soft-Close drawer slides




Selection



How to select (soft close) ball bearing drawer slides when you bulk drawer slides from a drawer slides manufacturer

From the application point of view


Length: The length of the drawer slide refers to the length of the outer member, generally from 12″~24″.

Loading capacity: different ball bearing drawer slides have different loading capacities. China’s national standard “QBT 2454-2103 Home Hardware – Drawer Slide” the standard is that the loading capacity force for home use is 150N, commercial use is 200N.


From the quality point of view


Appearance: how well the surface is treated, there is no trace of rust.


Smoothness: slide all pulled out, inverted and then see if the slide can return to the initial position, so as to detect the smoothness of the slide.



Structure: see whether the slide’s members are loose.



Noise: fast pulling whether there is noise issued.



Material thickness: the thickness of the material used for the drawer slide. The thinner the material, the lower the loading-capacity, the worse the quality.

Venace is a professional ball bearing drawer slides manufacturer. We have (soft close) drawer slides in stock, and our customers are all over the world. We not only control the quality and price to ensure the interests of our customers but also have a complete supply chain. If you need bulk drawer slides/ wholesale drawer slides, please do not hesitate to contact us to ask for the wholesale price.
