Folding Pull Out Ironing Board for Cabinets
A retractable cabinet ironing board that pulls out, unfolds and rotates up to 180°. It creates a practical work surface for wardrobes and fitted furniture, then stores inside the cabinet after use.
- Foldable pull-out design for cabinet integration
- 180° positioning for left- or right-handed use
- Removable, washable heat-resistant cotton cover
Product overview
Ironing access without permanent floor space

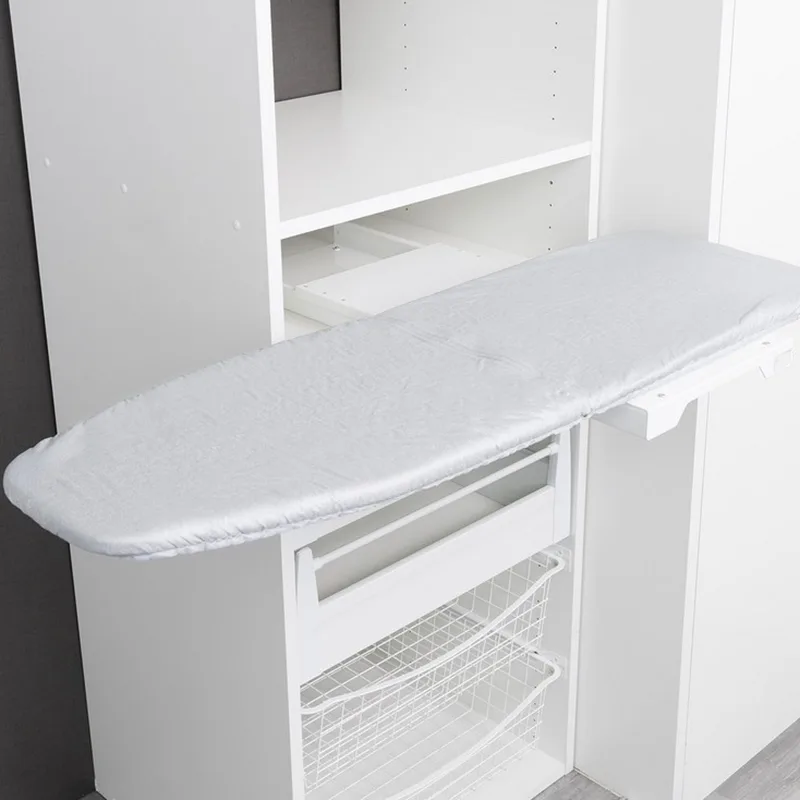

The mechanism installs inside a suitable cabinet or wardrobe. Pull the assembly forward on the slide rails, unfold the ironing surface and rotate it to the preferred working direction.

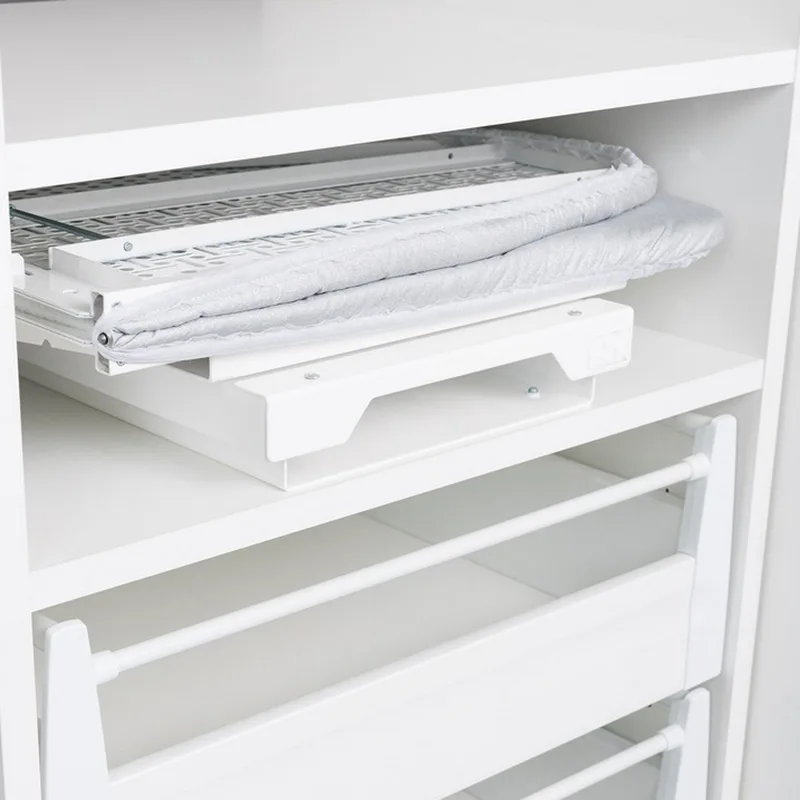

After ironing, fold the two-part board and push the assembly back into the cabinet. The compact stored position keeps the room clear while keeping the ironing station close to clothing storage.
Product advantages
Built for wardrobes, cabinets and fitted furniture
Functional details for cabinet manufacturers, furniture brands, distributors and OEM/ODM project buyers.
Compact folding storage

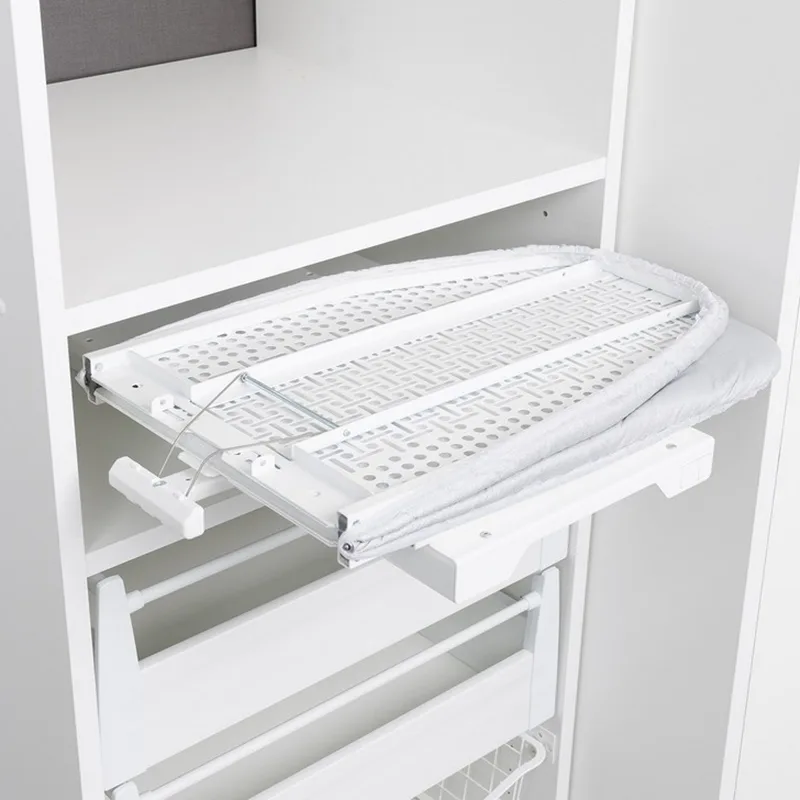

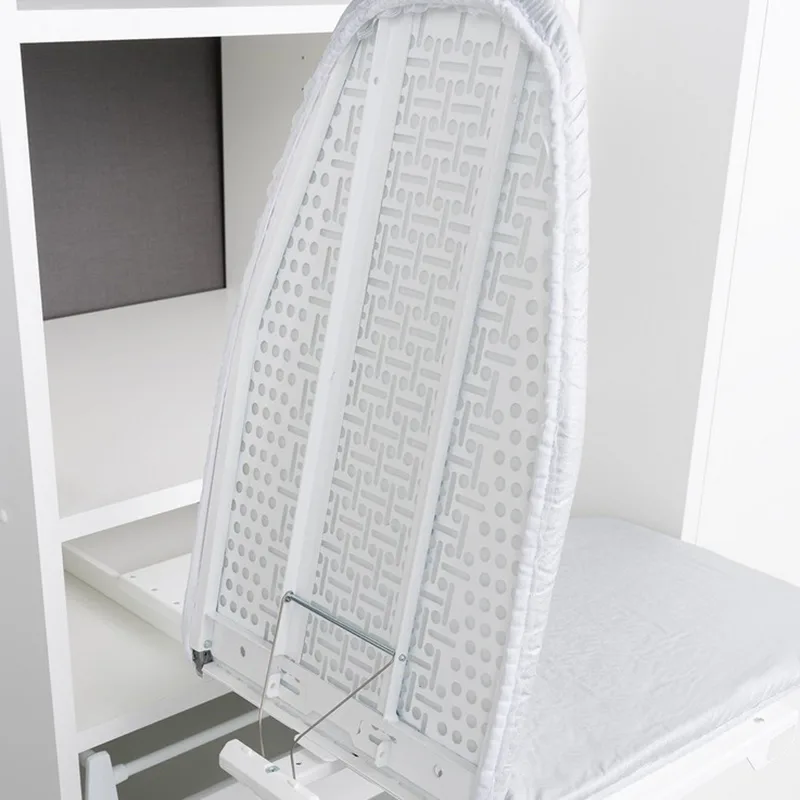

The two-part board folds into a compact footprint before it is pushed back into the cabinet.
Smooth pull-out movement
Ball-bearing slide rails support the extension and storage movement of the assembly.
180° positioning
The board can rotate across a 180° range to support different cabinet layouts and working positions.
Removable cotton cover
The heat-resistant cotton cover is removable and washable for routine maintenance.
Metal support frame

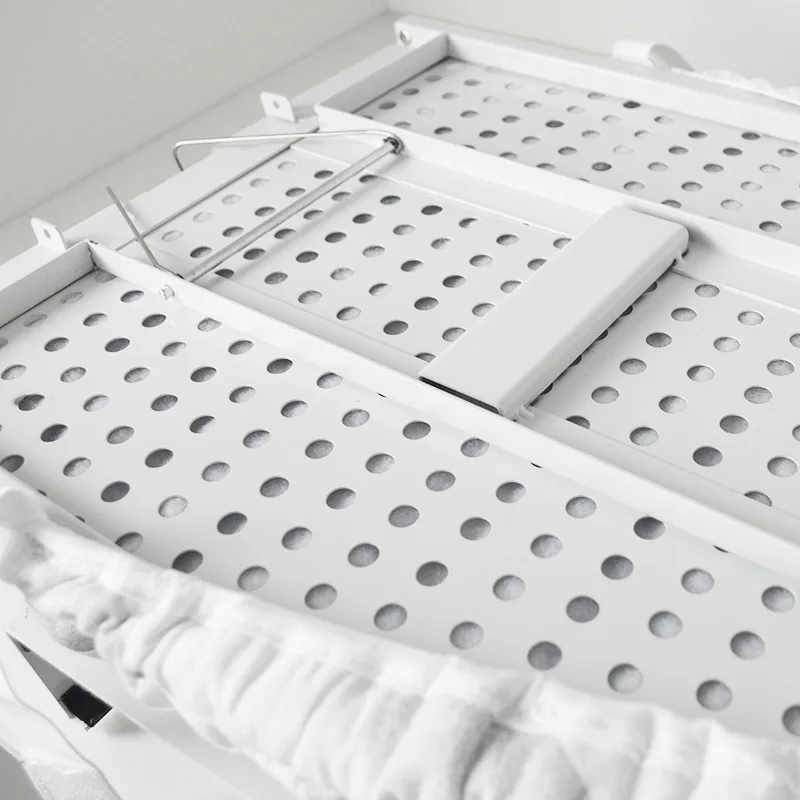

A perforated metal frame supports the ironing surface while allowing heat and steam to dissipate.
White painted finish
The metal assembly uses a clean white painted finish suited to light-colour cabinet interiors.
Specifications
Folding pull out ironing board specifications
| Product type | Cabinet / wardrobe folding pull out ironing board |
|---|---|
| Reference item | 33.35.30200200 |
| Open overall size | Approx. 956 × 710 × 110 mm |
| Stored footprint | Approx. 500 × 350 × 110 mm |
| Rotation | Up to 180° |
| Slide system | Ball-bearing rails |
| Structure | Metal frame with perforated support surface |
| Finish | White painted metal |
| Cover | Removable, washable heat-resistant cotton cover |
| Reference packing | 1 pc/carton; NW 10 kg; GW 11.1 kg; carton 600 × 400 × 190 mm |
The supplied reference packing table lists a different item number (33.35.30200100). Confirm the final item number, packing data, cabinet opening and drilling positions against the current drawing and quotation before production.
Operation sequence
Pull out, unfold, position and store

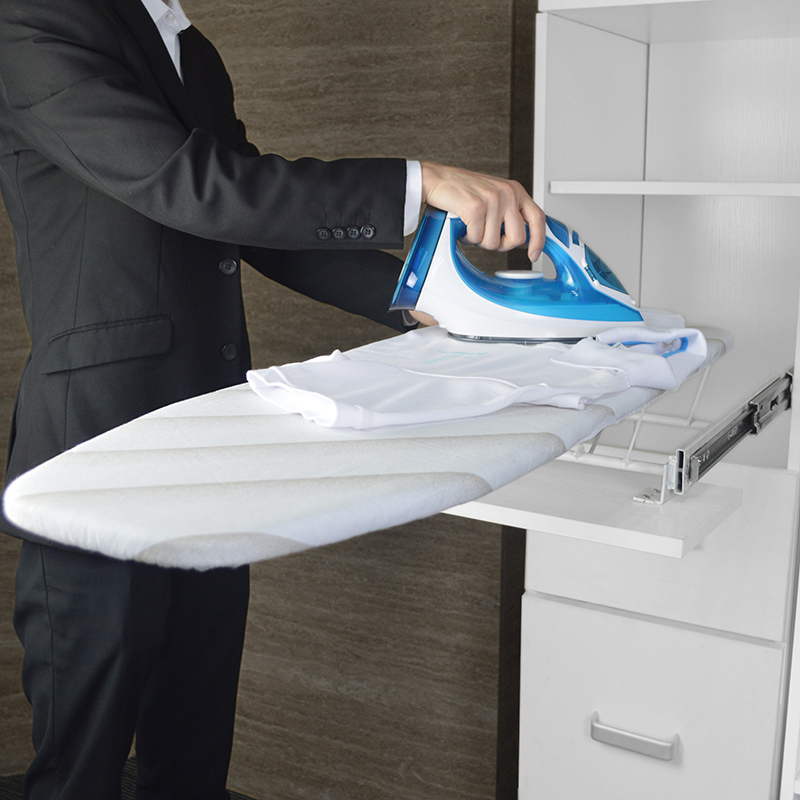

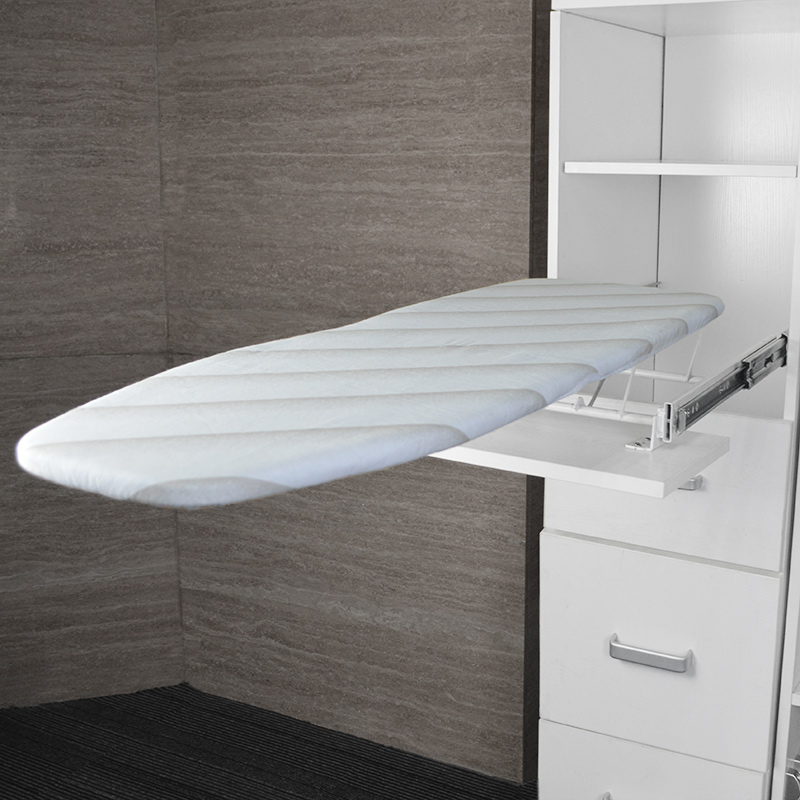

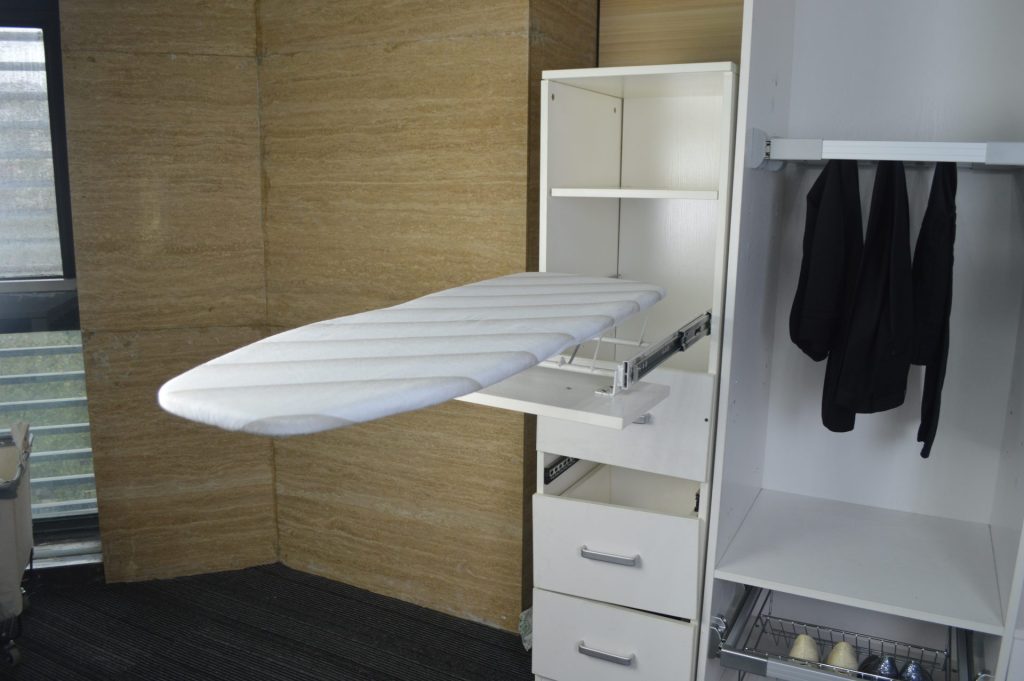

The four product views show the working sequence and the compact cabinet storage position.
Product video
See the folding and pull-out movement
Review the operating sequence before planning the cabinet compartment.
Product details

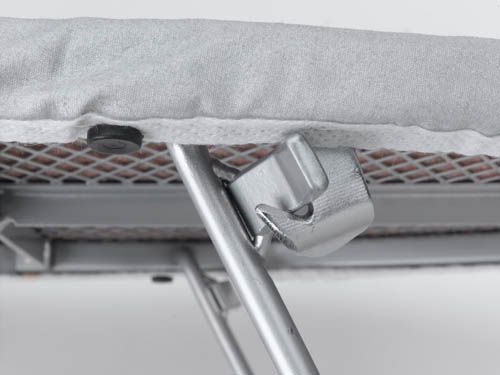

Slide rail, support frame and folded form
Key mechanical views help cabinet buyers review how the product integrates into fitted furniture.
Cabinet planning
Confirm the installation space before ordering
- Check the clear stored footprint and full opening envelope.
- Keep hinges, drawer fronts and adjacent fittings outside the operating path.
- Use a cabinet panel and fixings suitable for the product and operating load.
- Confirm drilling points and cabinet clearances against the current technical drawing.
- Test the pull-out, folding and rotation movement before final cabinet delivery.
Installation should be completed by an experienced cabinet installer. Final machining must follow the drawing supplied for the confirmed production item.
Information for a B2B quotation
- Estimated order quantity
- Target market and cabinet application
- Required cabinet opening and installation side
- Cover, colour, packaging or private-label requirements
- Destination port and required delivery timeline
Applications
Suitable for cabinet and furniture projects
- Custom wardrobes and walk-in closets
- Laundry cabinets and utility-room storage
- Apartments and compact residential projects
- Hotels, serviced apartments and fitted furniture
- Cabinet brands, furniture importers and distributors
Frequently asked questions
Folding pull out ironing board FAQ
How does this cabinet ironing board operate?
Pull the assembly out on the slide rails, unfold the two-part board and rotate it into the preferred working position. After use, fold the board and push it back into the cabinet.
How far can the ironing board rotate?
The supplied product information lists a rotation range of up to 180°, supporting different cabinet layouts and left- or right-handed working positions.
What are the approximate open and stored dimensions?

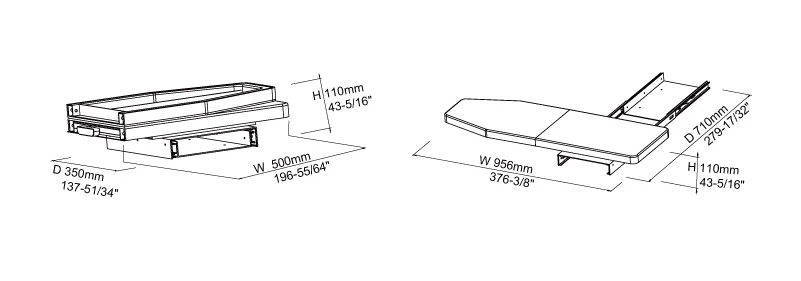

The supplied dimension illustration shows approximately 956 × 710 × 110 mm when open and a stored footprint of approximately 500 × 350 × 110 mm.
What type of slide rail is used?
The supplied product specification lists high-quality ball-bearing slide rails for the pull-out movement.
Is the ironing-board cover removable?
Yes. The supplied product information describes a removable, washable and heat-resistant cotton cover.
What cabinet opening is required?
The exact opening, drilling points and operating clearances depend on the confirmed production item and cabinet design. Check these dimensions against the current technical drawing before machining.
Why does the packing note require confirmation?
The supplied packing table lists item 33.35.30200100, while the main specification lists item 33.35.30200200. VENACE should confirm the applicable item and packing data in the quotation.
How do I request wholesale or OEM information?
Send VENACE your company, country, estimated quantity, cabinet application, customization requirements and delivery destination.
Request a quote
Discuss your cabinet ironing board project
Tell VENACE your quantity, cabinet layout, target market, cover and packaging requirements, and delivery destination. We will confirm the applicable product specification and quotation details.
